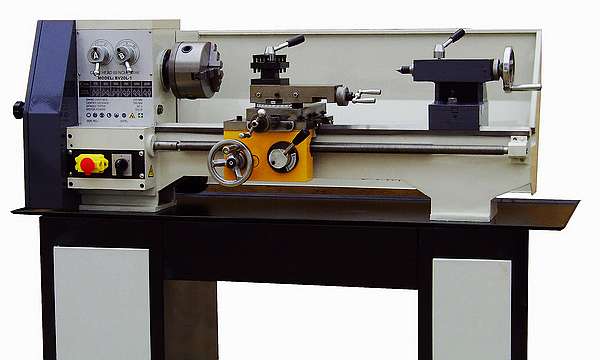

BL250D
<!--?xml:namespace prefix = "o" /-->
|
SPECIFIACTION |
主要技術參數 |
BL250D |
BL250G |
|
|
Sawing over bed Sawing over carriage |
導致上回轉直徑 床鞍上回轉直徑 |
250mm 150mm |
250mm 100mm |
|
|
Center to center |
兩頂尖距離 |
550mm |
500mm |
|
|
Spindle bore |
主軸孔徑 |
26mm |
26mm |
|
|
Spindle speed |
主軸轉速(低速) |
140-1800rpm |
80-1600rpm |
|
|
Spindle taper |
主軸錐度 |
MT#4 |
MT#4 |
|
|
Feeding range |
送給范圍 |
0.05-0.1mm/r |
0.03-0.3375mm/r |
|
|
Swivel of compound |
刀架回轉角度 |
±45°
|
±45°
|
|
|
Cross slide travel |
橫向行程 |
125 mm |
130 mm |
|
|
Metric threads |
可加工公制螺紋 |
20/0.2-3.5 mm |
15/0.25-2.5mm |
|
|
Inch threads |
可加工英制螺紋 |
20/8-56tpi |
9/96-12tpi |
|
|
Tailstock taper |
尾座錐度 |
MT#2 |
MT#2 |
|
|
Quill of tailstock travel |
尾座套筒行程 |
50mm |
60mm |
|
|
Motor power (DC) |
直流電機功率 |
550w |
750w |
|
|
Net weight |
凈重 |
160kg |
163kg |
|
|
Packing size |
包裝尺寸 |
1250x790x600mm |
1200x620x550mm |
|
