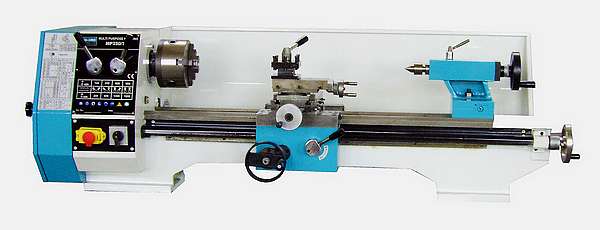

TT220
<!--?xml:namespace prefix = "o" /-->
|
SPECIFIACTION |
主要技術參數 |
BL200G |
BL200B |
|
Sawing over bed |
導致上回轉直徑 |
220mm |
|
|
Sawing over carriage |
床鞍上回轉直徑 |
115mm |
|
|
Center to center |
兩頂尖距離 |
520 mm |
|
|
Spindle bore |
主軸孔徑 |
20mm |
|
|
Spindle speed |
主軸轉速 |
170-2000rpm |
120-2000rpm |
|
Spindle taper |
主軸錐度 |
MT#3 |
|
|
Feeding range |
送給量范圍 |
0.05-0.20mm/r |
0.04-0.30mm/r |
|
Swivel angle compound rest |
中拖扳回轉角度 |
±45°
|
|
|
Cross slide travel |
橫向行程 |
105 mm |
|
|
Metric threads |
可加工公制螺紋 |
0.25-3 mm |
0.4-3 mm |
|
Inch threads |
可加工英制螺紋 |
48-8TPI |
48-8TPI |
|
Tailstock taper |
尾座錐度 |
MT#2 |
|
|
Quill of tailstock travel |
尾座套筒行程 |
50mm |
|
|
Motor power (DC) |
直流電機功率 |
550w |
|
|
Net weight |
凈重 |
140kg |
115kg |
|
Packing size |
包裝尺寸 |
1220x560x570mm |
|
