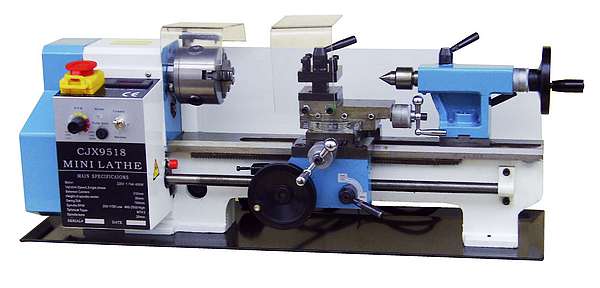

GJX9518
Features特點：
Metal & hobby working
適合金屬及模型加工
Variable speed control
主軸可控無級調速
Auto longitudinal feeding
縱向自動進給
Safety switchu & covers
|
SPECIFIACTION<!--?xml:namespace prefix = "o" /--> |
主要技術參數 |
BL180/BLX180 |
|
Sawing over bed |
導致上回轉直徑 |
180mm |
|
Sawing over carriage |
床鞍上回轉直徑 |
105mm |
|
Distance between centers |
兩頂尖距離 |
310 mm |
|
Spindle bore |
主軸孔徑 |
20mm |
|
Spindle speed(low) |
主軸轉速(低速) |
100-1100rpm |
|
(high) |
(高速) |
100-2500rpm |
|
Spindle taper |
主軸錐度 |
MT#3 |
|
Cross slide travel |
橫向行程 |
65mm |
|
Metric threads |
可加工公制螺紋 |
0.4-2mm |
|
Inch threads |
可加工英制螺紋 |
52-12TPI |
|
Tailstock taper |
尾座錐度 |
MT#2 |
|
Quill of tailstock travel |
尾座套筒行程 |
40mm |
|
Motor power (DC) |
直流電機功率 |
350w |
|
Net weight |
凈重 |
35kg |
|
Packing size |
包裝尺寸 |
700x310x360mm |
